Product Abstract:

COLOR LASER ENGRAVING AND CUTTING CONTROLLER 6332G , USB PORT DSP , CAD, COREDRAW, OUTPUT DIRECTLY. RESTART WHERE POWER OFF.


Product Description

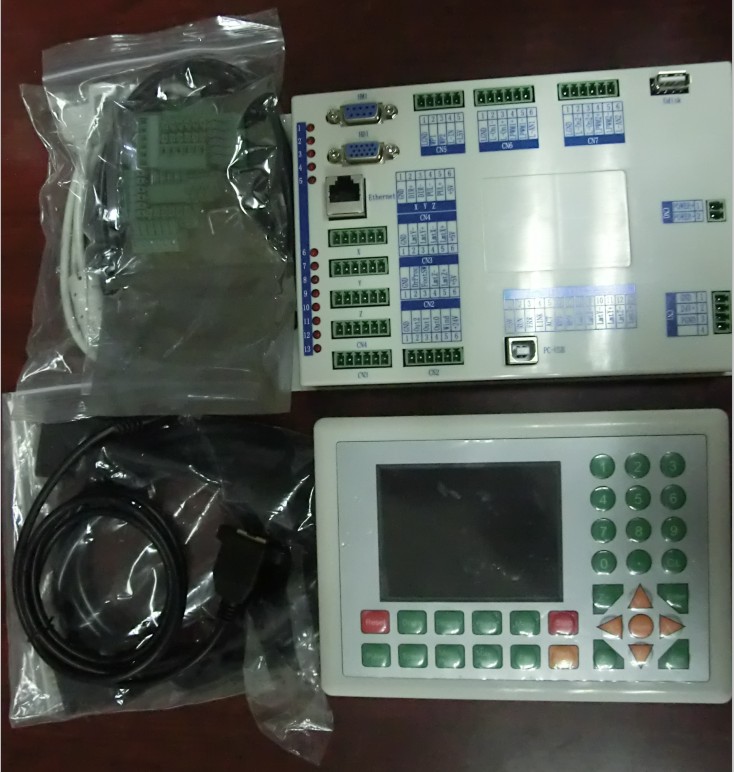

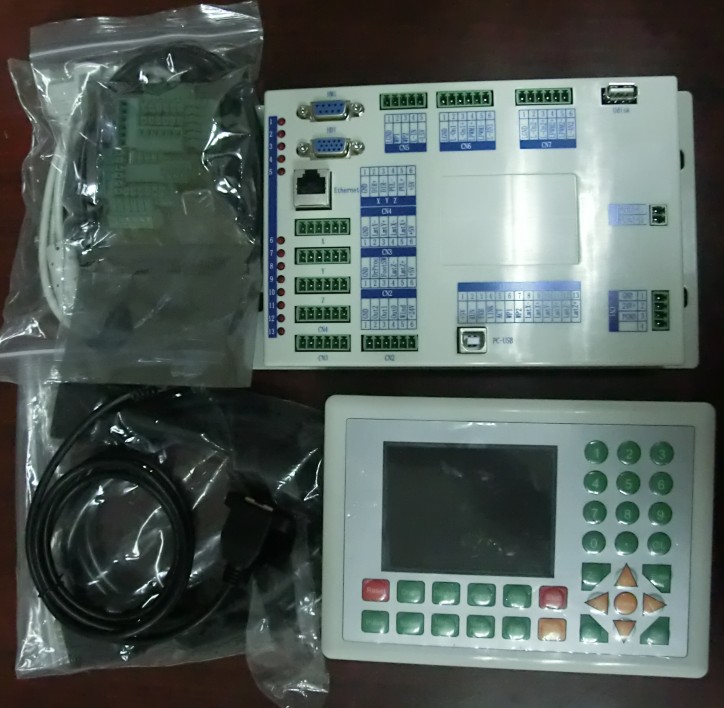

RuiDa Laser carving cutting card RDC6332G

The RDC6332G control card is the RuiDa technology the sixth generation of carving/cutting control system general hardware platform which the science and technology in April, 2012 grandly promotes.3.5 inch 320*240 picture element 32 real color TFT screen; Ethernet connection and USB connection; Integrates the RDC633XG general platform therefore hardware characteristic; Reaches as high as the 2MHZ high speed data transmission; Presente in figures and diagrams demonstrated; Dynamic demonstration path processing advancement and fiducial mark; The static state looks at the memory document in advance; Direct revision chart level parameter and other parameters; Support mouse operation.

The RDC6332G system is the RuiDa technology the technical development the newest generation of laser carving/cutting control system, this control system has the better hardware stability, has a better anti-high-pressured, the anti-electrostatic disturbance characteristic.Has the friendlier operation contact surface based on the LINUX man-machine operating system and a more formidable function.This controller including the more perfect more outstanding movement control function, the large capacity file memory, the two-circuit independent adjustable digital/simulation laser power source control connection, the compatible stronger U plate driver, the multi-channel general/special-purpose IO control, the integrated special-purpose time system support hardware encryption algorithm, may choose and so on with the PC machine communication support ethernet communication and the USB communication.

The digital laser control signal

 (1) difference output, the TTL level, 20mA driving force

 (2) PWM frequency 2.5K~100K adjustable

 (3) PWM the dutyfactor 2%~98% adjustable

 simulation laser control signal 0~5V automatic followed adjustment

 electrical machinery control signal difference output, the TTL level, 20mA driving force

 electrical machinery control pulse frequency biggest 500KHZ

 USB biggest transmission speed 12M, the most long distance 5 meter

 straight line/circular arc /B transect interpolation precision +/-0.5 pulse

 4 group general photoelectricity isolates the OC gate output, biggest 600mA driving force

 4 group general photoelectricity isolation input, TTL level



The RuiDa technology the RDC6332G controller most remarkable characteristic:

1st, the ethernet (10/100M) and the USB2.0 transmission (the transmission speed is above RDLC320-A product 3 times.);

2nd, the real color TFT screen, can demonstrate the real color on the kneading board the processing graph, simultaneously can on the kneading board the accurate learning laser processing coordinates position;

3rd, can in advance look at the document graph on the kneading board which in the memory preserves, it brushes the screen speed, domestic manufacturer nobody can and;

4th, dynamic demonstration path processing advancement and fiducial mark;

5th, can in operate on the kneading board to revise each chart level directly the processing parameter (for example: The speed, the power and so on), after simultaneously can preserve automatically the revision chart level parameter, prepare the following use (this function other manufacturers to be unable to realize.);

6th, formidable mouse operation support.(Can directly carry on the operation in ours operation kneading board with the mouse, this function other manufacturers are unable to realize, simultaneously this function overseas customer likes extremely.);

7th, the support power failure continues carves, the man-hour looks at in advance (as precisely as a millisecond level, the man-hour in advance looks at the value and the practical work consumes the time to be completely consistent, this function other manufacturers are unable to realize.)。

8th, support feeding, fluctuation, revolving carving, about functions and so on push pedal.

9th, the RDC6332G system is the RuiDa technology the technical development the newest generation of laser carving/cutting control system, this control system has the better hardware stability, has a better anti-high-pressured, the anti-electrostatic disturbance characteristic.

10th, based on the LINUX platform development man-machine operating system, has the friendlier operation contact surface and a more formidable function.

11th, this controller use is more perfect the movement control algorithm which, optimizes, its processing speed and the efficiency are before the system is unable and.



Laser carving

laser cutting

laser welding



1

RDLC320-A

For laser cut&engraving, the common type, USB communicate to PC, support for three axis motion,128*64 Dot screen.

2

RDLC430-A

For laser cut&engraving, may intelligently move two laser header based on array graph. USB communicate to PC, support for four axis motion, 128*64 Dot screen.

3

RDC6331G

For laser cut&engraving, Ethernet and USB communicate to PC, support for three axis motion,128*64 Dot screen

4

RDC6332G

For laser cut&engraving, Ethernet and USB communicate to PC, support for three axis motion,320*240 (3.5 inch) TFT screen, mouse is supported

5

RDC6333G

For laser cut&engraving, Ethernet and USB communicate to PC, support for three axis motion,640*480 (5.6 inch) TFT screen, mouse is supported

6

RDC6334G

For laser cut&engraving, Ethernet and USB communicate to PC, support for three axis motion, 640*480 (7.0 inch) touch screen, mouse is supported

7

RDC6342G

For laser cut&engraving, may intelligently move two laser header based on array graph. Ethernet and USB communicate to PC, support for four axis motion, 320*240 (3.5 inch) TFT screen, mouse is supported

8

RDC6343G

For laser cut&engraving, may intelligently move two laser header based on array graph.Ethernet and USB communicate to PC, support for four axis motion, 640*480 (5.6 inch) TFT screen, mouse is supported

9

RDC6344G

For laser cut&engraving, may intelligently move two laser header based on array graph. Ethernet and USB communicate to PC, support for four axis motion, 640*480 (7.0 inch) touch screen, mouse is supported

10

RDV6342G

For laser cut&engraving, To support visual cutting, Ethernet and USB communicate to PC, support for three axis motion,320*240 (3.5 inch) TFT screen, mouse is supported.
