Metal and non-metal laser cutting controller system RD6332M

  • laser controller RDLC320-A
  • color laser controller 6332G
  • RD co2 laser cutting controller 6442g
  • Metal and non-metal laser cutting controller system RD6332M
  • metal cutting machine  autofocus head
  • CCD CO2 laser cutting machine controller
  • RDC6344G 4AXIS 7INCH TOUCH SCREEN CO2 LASER CONTROLLER
  • lihuiyu studio lab5
  • yueming co2 laser cutting controllerRDC6442G-YM-B

Product Abstract:

RDC6332M Metal and non-metal laser cutting system is based on the RDC6332M motion controller. Employed with laser metal techniques, this control system is suitable for non-metal laser cutting and metal laser cutting.


Product Description

Metal and non-metal laser cutting system is based on the RDC6332Mmotion controller. Employed with laser metal techniques,

this control system is suitable for non-metal laser cutting and metal laser cutting.

parameter

Laser control signals, differential output, TTL, up to 20mA driving ability

PWM frequency 2.5KHz~100KHz. PWM duty ratio 1%~99%

Laser power control : analog voltage,0~5V

PULSE+DIR for motor control, differential output.

Based on USB2.0 for data transferring

General purpose input and output, photoelectric isolation

Linear and circular interpolation, interpolate precision is +/-0.5puse

Description:

System encryption on board

Non-volatile memory on board for user parameters

File storage capacity is up to 256M

The recovery of the power failure memory function

Controller program Updated by software

2 channels laser control, PWM and analog are available

Specific interface for RF CO2 laser

4 axes supported and pulse + dir for motor control

Specific interface for tracing laser head control

Linear, circular and B spline interpolation

Specific functions for metal cutting

Detail:

Environment :0 ~ 70 ℃, humidity less than 80%



Accessories

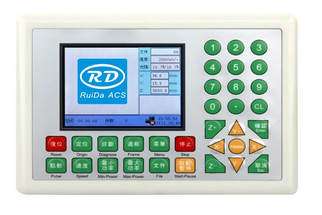

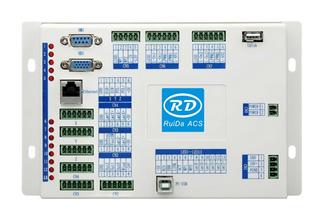

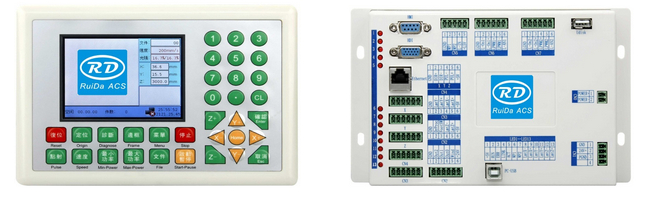

Motherboard, display board, shielded cable, shielded USB cable, 3.81mm terminal

Master Card Size

170mm x 120mm

Expansion interface board size

No

Power supply :

24V/3A



Application:

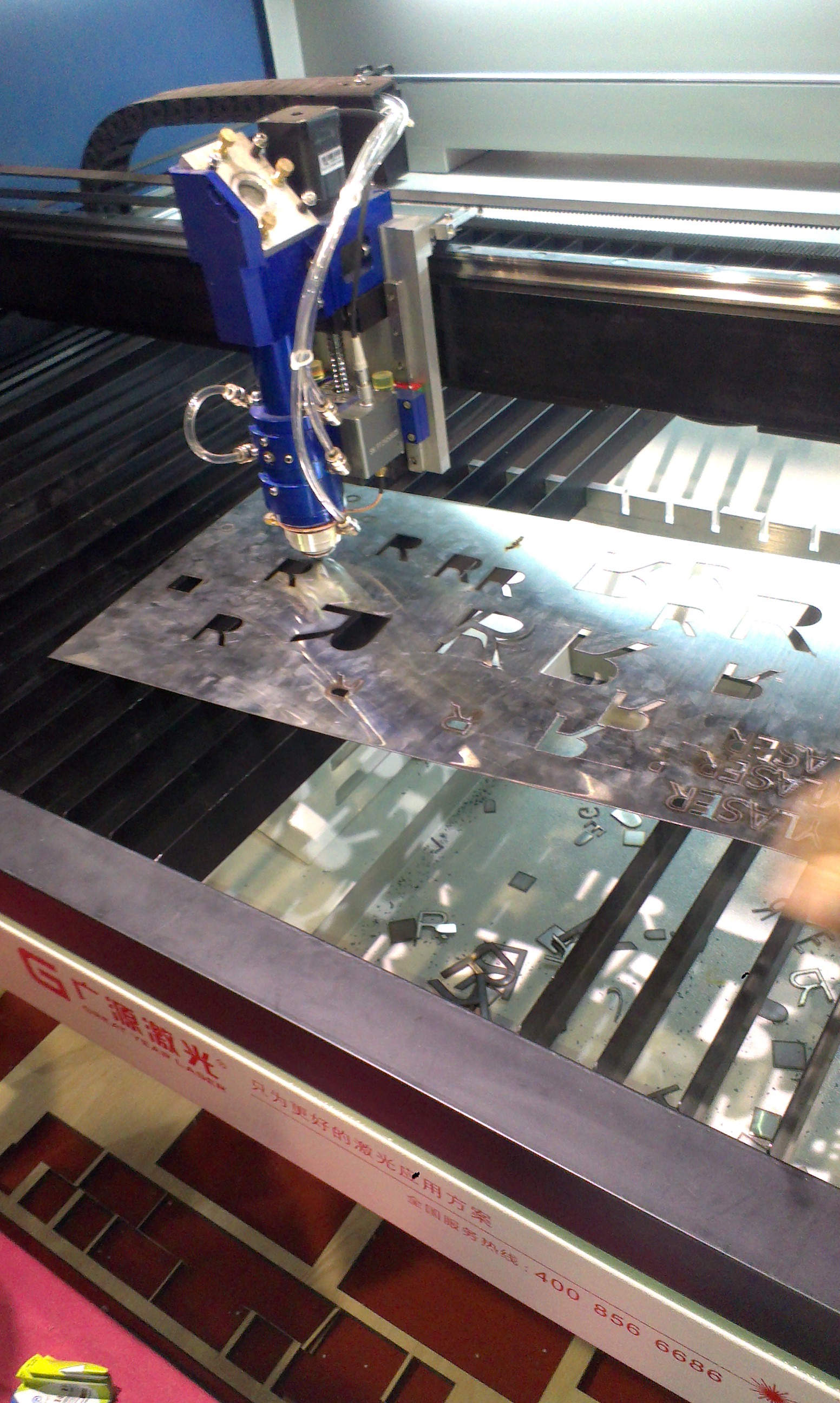

laser metal cutting, non-metal  cutting
