Product Abstract:

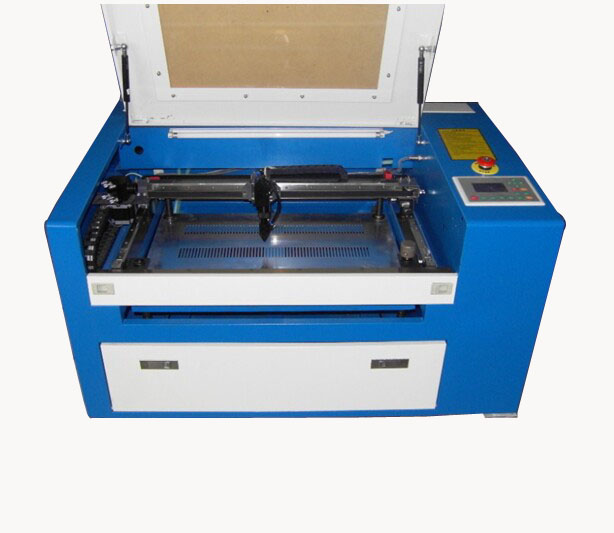

mini co2 laser engraving and cutting machine 5030 40w , DSP motion control card, USB port,up down table by hand, line rail and sliders, standard mechanical parts, with air pump ,water pump, air blower.


Product Description

mini co2 laser engraving and cutting machine 5030 40w , DSP motion control card,

USB port,up down table by hand, line rail and sliders, standard mechanical parts,

with air pump ,water pump, air blower.

package size:  114*77*73cm   105kg



Applicable Materials

The applicable materials include wool, cloth, leather, fur, acrylic, plexiglass,

 wooden board, plastic, resin and other non-metal materials;



Technical Parameters

Laser power :

45 W(optional)

Laser tube life Span

2500 working/hours.

Applicable Materials

Acrylic,Glass,crystal,wood,leather,cloth,rubber,marble,ceramic,etc.

Working area:

300*500 mm

Max moving speed:

1500mm/s

Laser energy control:

1-100 set by hand or software

Worktable:

Electric Up and down table. Up to 25 CM

Locating precision:

<0.01 mm

Min shaping character:

Character: 2*2 mm,; letter: 1*12 mm

Operating temperature:

5°C-35°C

Resolution ratio:

<4500 dpi

Laser type:

Hermetic CO2 glass tube

Power supply:

AC220±10%50 HZ/AC110±10%50 HZ

Control configuration:

DSP.

Data transfer interface:

USB (offline).

USB Ports

2

System environment:

WINDOWS 2000/WINDOWS XP/MAC/Vista

Cooling way:

Water cooling and protection system

Graphic format supported:

The file which CorelDraw, Photoshop, AutoCAD can

 identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,

DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,

SVG,SVGZ,PCT,FMV,GEM,CMX).

USER MENU

Full English.

Package Inclusion

Software,VIDEO USER MENU CD,Air pump gun,Power cables,

USB cables, Water tank,Water Pipe,Smoke

 Vent-pipe,Air Blow Pipe ,exhaust fan,Tools bag

Memory

64 MB

Display screen

LCD(SIZE 70*40 mm)

Protection System

Yes

Option parts

high-grade cooling system/double-head/cylinder rotary Jig/ irregular rotary Jig/

honeycomb table/ knifes table

Guarantee

1 year ,damageable spare parts (like laser tube,mirrors)  3 months

Dimensions

1020*650*630mm

Dimensions(package)

1140*770*730 mm

Net Weight

82KGs

Gross Weight

105KGs

Recommended Ship way

sea
