Product Abstract:

double head express laser engraving and cutting machine 1280 1390 1610 ,DSP motion control card,USB PORT,high cutting speed.


Product Description

double head express laser engraving and cutting machine 1280 1390 1610

english controller, honey comb work table.

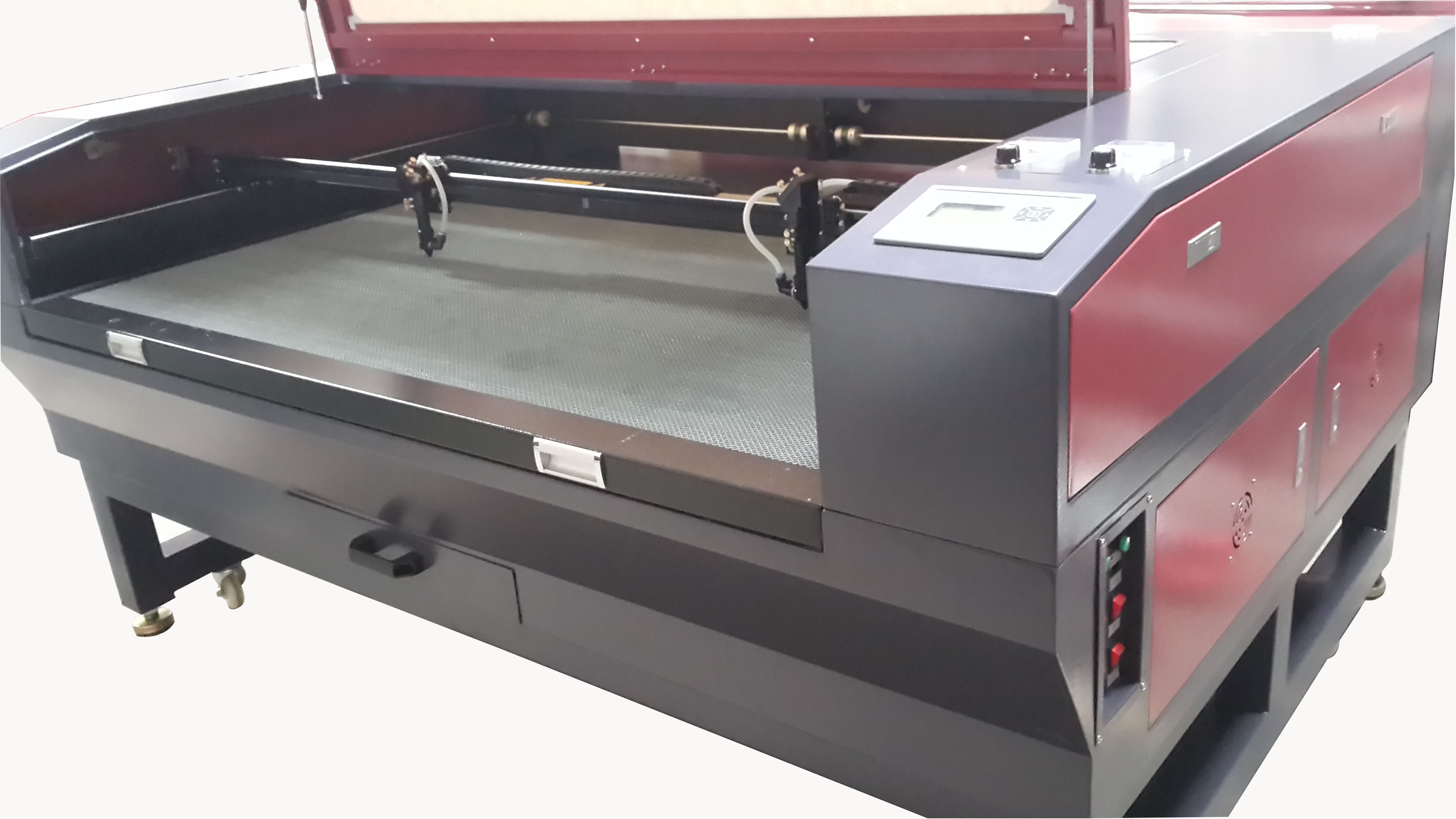

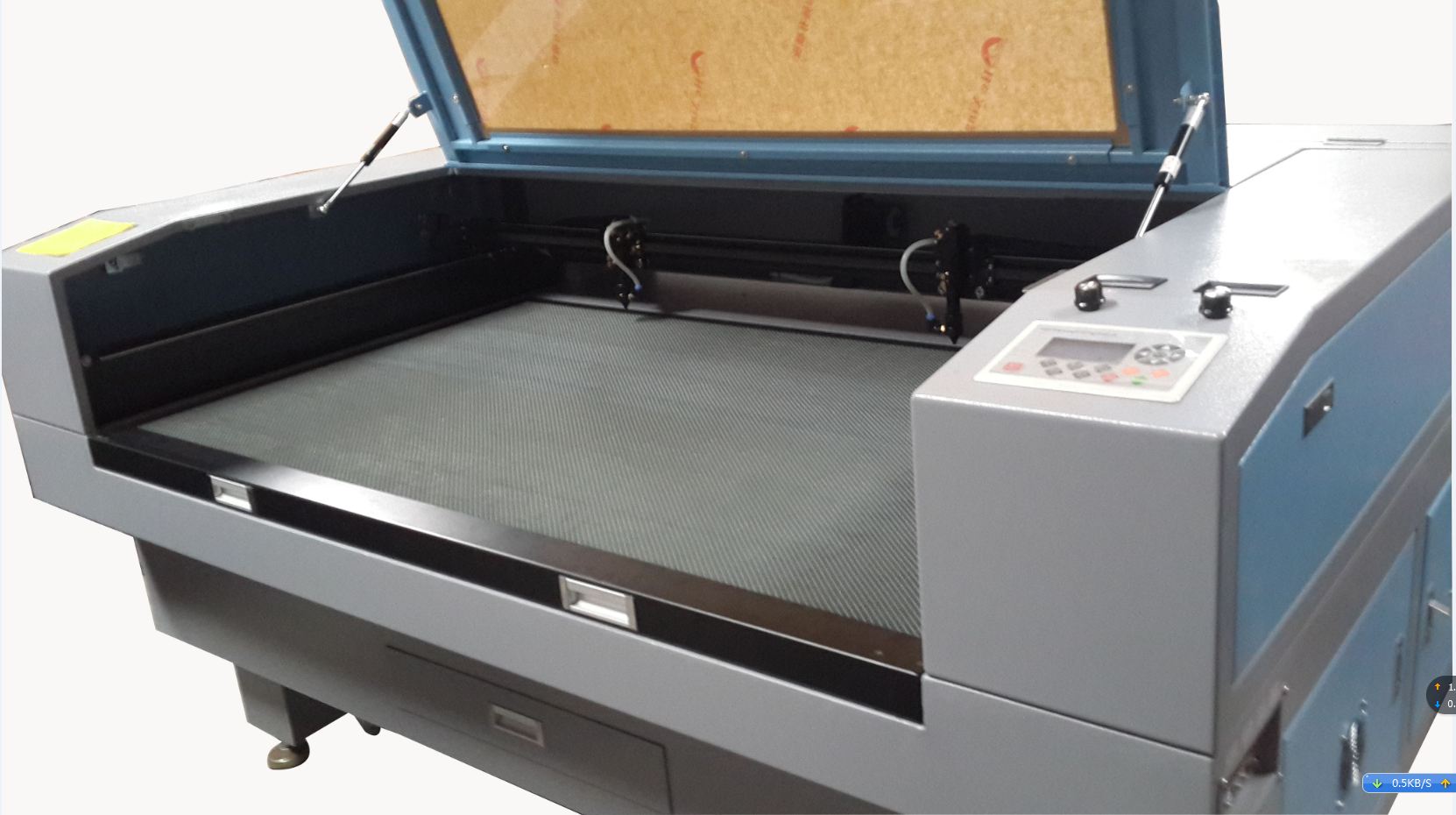

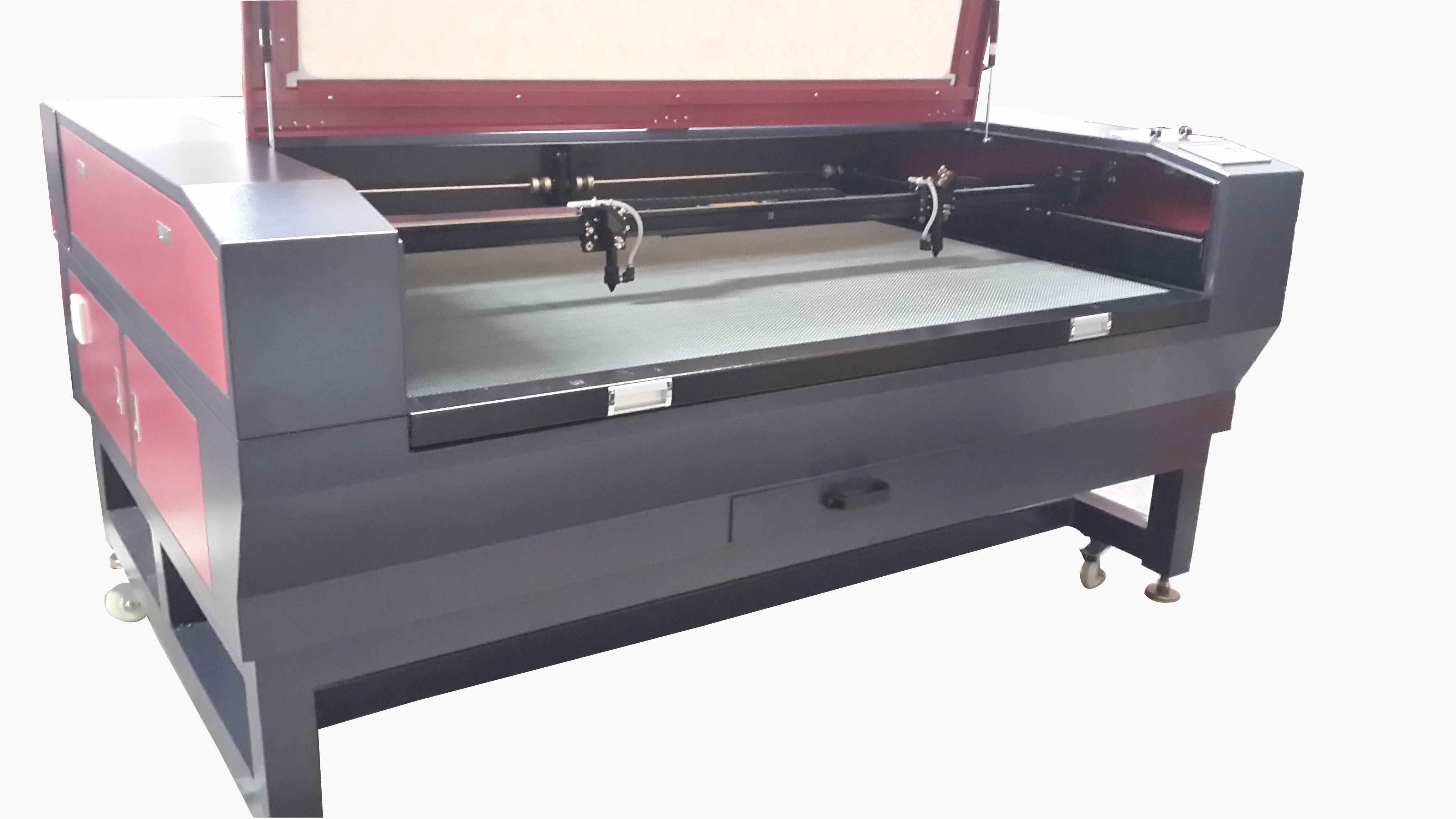

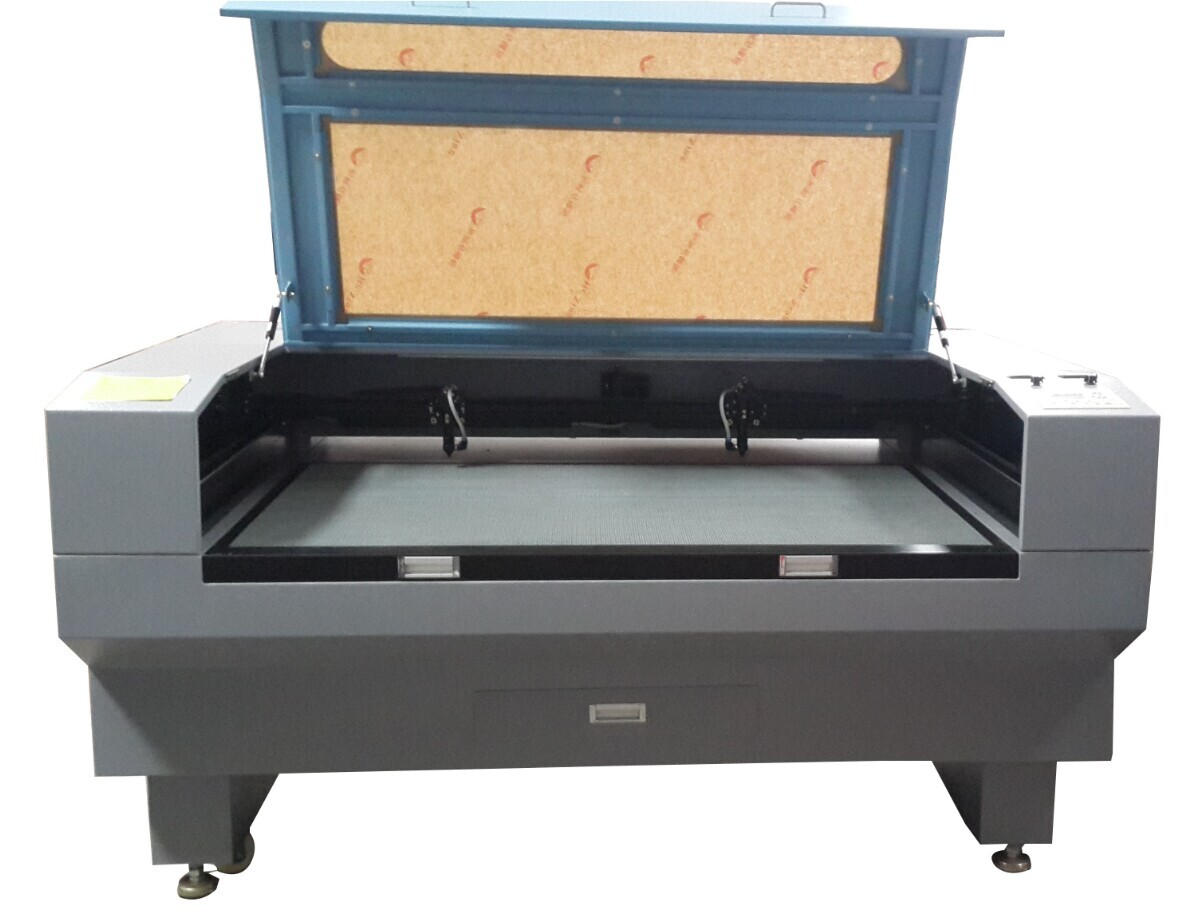

1610 express double head co2 laser cutting machine



Parameter:



Model:

1610 (Double Laser Head)

Working Area:

1600x1000(mm)

Laser Power:

80W, 100W

Laser Type:

Sealed CO2 laser tube

Working Platform:

Honeycomb/Blade

Working Speed:

1200mm/s

Positioning Accuracy:

±0.05mm(Red Dot)

Graphic Format Supported:

 BMP  PLT  DST  AI  DXF etc.

Cooling System:

Water cooling and protecting system

Working Voltage:

AC220V±10% ,50~60Hz ,  10A max

Working Temperature:

0~45℃

Operating Humidity:

5%~95%

Motor:

Stepping (Servo Optional)

Whole Machine Size:

2220x1570x1035(mm)

Optional:

Double Head Switch



features

 1)   Quick Curve Cutting: Cut any curve fast and Continuous cutting. The movement of laser head is

graceful like a moving top Gear .

2)  Full supported for  CAD, CORELDRAW, PHOTOSHOP and other sofeware , USB interface is

friendly to use ,  meet the demand of the market .

3)   Multi-Document  Function: This series can restore up to 256 job files, Operator can choose the job file on

 the laser machine independently without computers, then realize the producing of 256 different products.

4)   All optical isolation system and High speed differential input/output circuit can avoid distortion

  when transmitting for a long distance, strong ability of anti-interference. The system has realized

12-way work status output and 16-way input to meet the manufacturing spot of our client

5)   Large format laser cutting machine cut smooth fine ,can meet the fabric ,cloth  punching and cutting .

6)   Stable optical system ,with industrial chiller ensure  large format cutting  .laser power

 output is stable,fast and  efficient.

7)    working  table area can be customized according to users'need.



Application Industry:

      Garment, Shoes, Textile, Embroidery, Leather, Bag and cases, Outdoor, Sports, Car seat  fabric etc.



Application Material:

      Leather, artificial leather, Soft Leather, Decoration Leather, Packing Leather, etc. Cotton,

 Silk, Chemical Fiber, Jeans, etc.



Typical Applications:

      Material Cutting for Garment, Shoes, cloth toy, Cases and Handbags, Camping Equipment

, Car Seats fabric , Hollowed -out  Tablecloth, Lable  cutting
