Product Abstract:

handheld co2 laser power meter 0-200w


Product Description

One . Technical parameters:

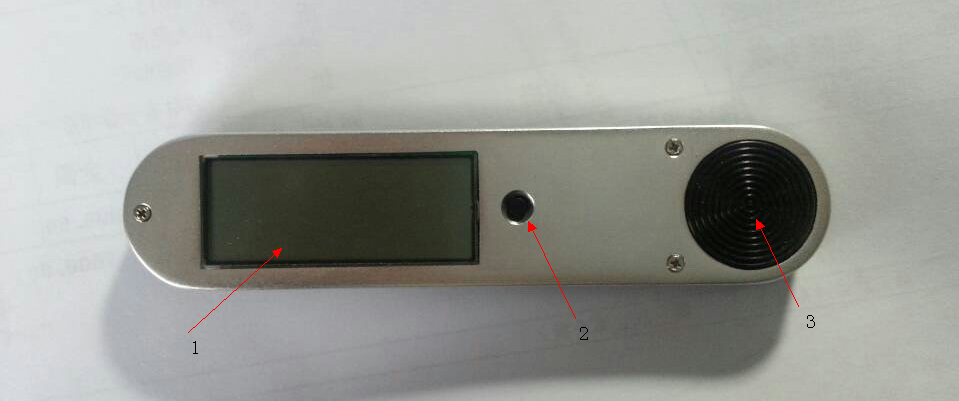

Product Name : handheld power meter.

Model : HLP-200

Range : 200w calibration

wavelength : 10.6um

Battery : 3v/3.6v  2032 button batteries



Two . Usage:

When the handheld power meter work will be voice prompts ,

press the start switch will be 5 intermittent beeping sound ,

the first sound tone prompts normal self ,

a second tone will be immediately sent to the laser radiating power meter ,

third tone tone to start testing,

the fourth tone beep prompt detection is complete , please remove the power meter `

 Do not stay long display area shows the number of power ,

the fifth beeping sound off automatically.

Such as when using one long beep simultaneously display 888.8 said sensor failure ,

 please contact the manufacturer , must not dismantle .

Such as when using one long continuous tone also shows ooo.o expressed as a target

 surface temperature is too high or out of range , to be cooled before use.



Three . Note:

1 When using , please take care, to prevent damage to precision components .

2 please use before , after a second tone third tone beep will put laser power meter radiating !

3 try to align the center of the target laser radiating surface !

4 The use of multiple target must wait before the surface temperature decreased to

 room temperature after the second measurement .



Four . Service: The product year warranty and lifetime maintenance.

The following objects are not free warranty objects ;

1 over the warranty period.

2 due to force majeure and man-made damage .

3 users disassemble renovation and repair damage caused by the malfunction .
