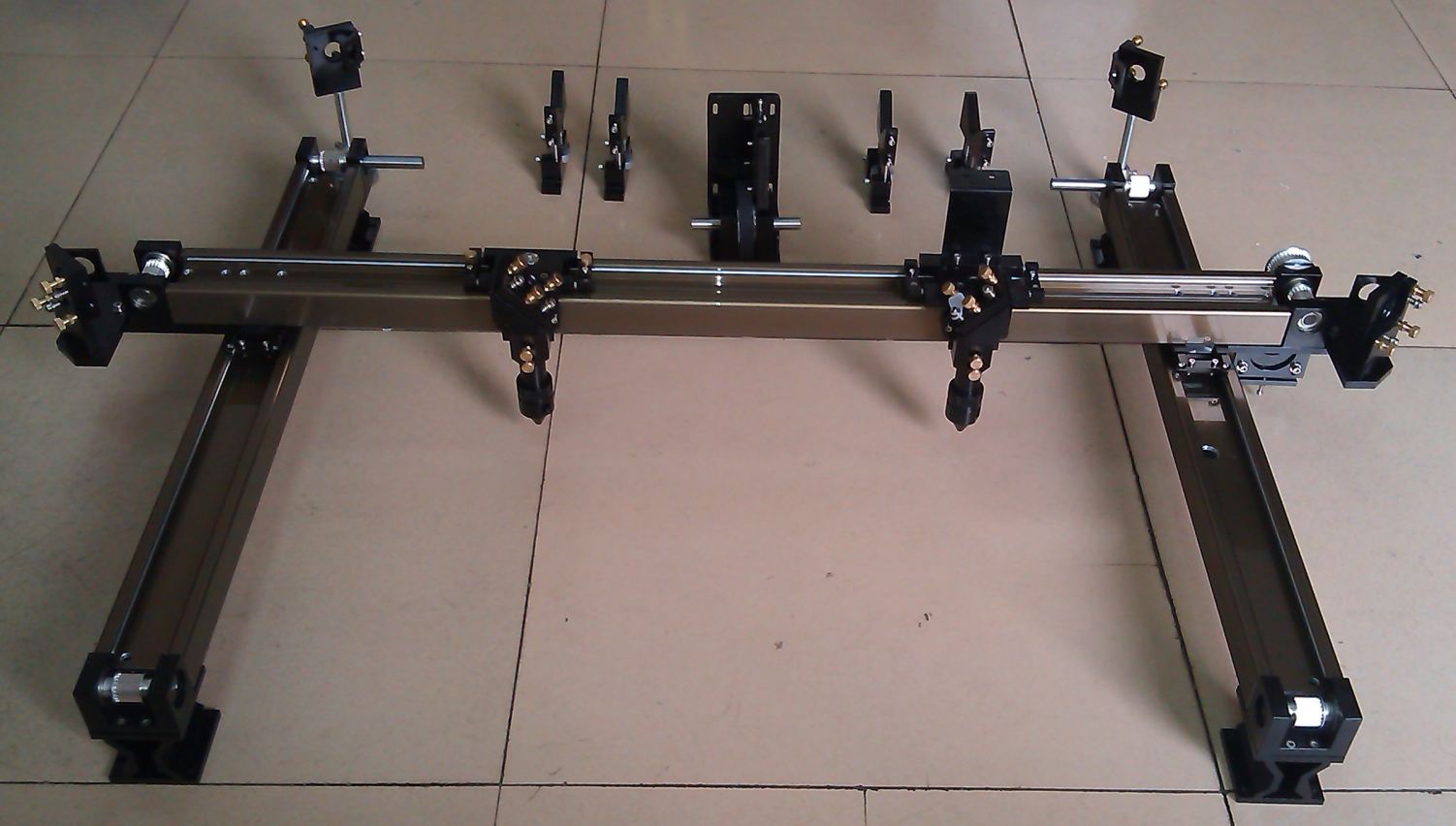

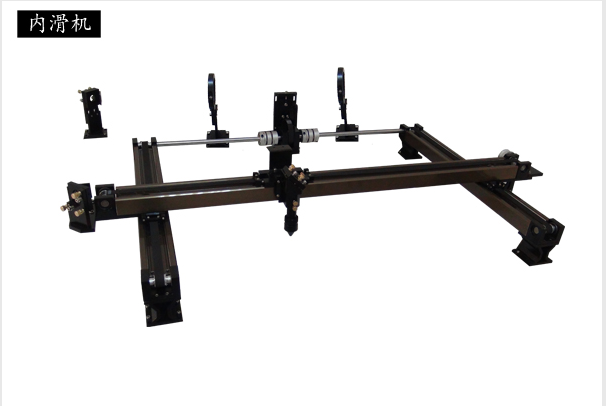

double inside slider rail single head double head whole set parts

  • Laser head and mirror mounts
  • red dot positioning light
  • Co2 laser machine mechanical parts
  • Co2 laser machine optical parts
  • laser head and mirror mounts
  • double outside slider rail single head double head whole set parts
  • double inside slider rail single head double head whole set parts
  • line square rails laser cutting machine parts
  • flat co2 laser cutting machine mechanical parts whole kit
  • CO2 laser metal cutting head
  • auto focus co2 laser cutting head
  • up down table for co2 laser engraving and cutting machine
  • flat co2  laser cutting machine parts
  • color precise co2 laser cutting machine parts
  • co2 laser beam combiner and red pointer supports
  • taiwan hiwin PMI rails and sliders
  • leadshine step motor and drivers
  • step motor gears for laser cutting machine
  • non-metal auto focusing cutting system

Product Abstract:

double inside slider rail single head double head whole set parts 6040 9060 1280 1290 1390 1590 1610


Product Description

double inside slider rail single head double head whole set parts 6040 9060 1280 1290 1390 1590 1610

序号 部件名称
product
零件名称  单价/个
unit price
备注
1 激光管调节座
tube supports
上支架  30.00   或
M6丝杆
调节光杆
调节轮
底座
底座锁定板
2 第一反光镜组
first reflecting
 mirrors mounts
镜片安装座  20.00
镜片压环
镜片调节板
镜片调光板
镜片调节杆
镜片调节杆底座
M6*0.5铜螺丝
3 X轴左安装件
X axis left fixture
 with y left slider
轴承座  50.00
6000ZZ轴承
同步轮轴
同步轮挡圈
3M-20Z-φ10同步轮
二反连接板
同步轮座连接板
镜片安装座
镜片压环
镜片调节板
镜片调光板
M6*0.5铜螺丝
4 X轴电机轮组
X axis motor fixture
X轴电机安装板  70.00
电机调节板
轴承座
6000ZZ轴承
同步轮轴
同步轮挡圈
3M-20Z-φ10同步轮
3M-38Z-φ10同步轮
Y轴拖链安装板
5 1#激光头
laser head
with slider
激光头座  50.00
3反镜架
反光镜压环
内镜筒
气嘴
聚焦镜压环
M5*10铜螺丝
M6*0.5铜螺丝
激光头连接板
同步带调整块
同步带压块
X轴拖链支架
激光头滑块
6 Y轴前同步轮组
Y axis front fixture
轴承座  30.00
6000ZZ轴承
同步轮轴
同步轮挡圈
3M-20Z-φ10同步轮
7 Y轴同步轴轮组
Y axis fixture
轴承座  35.00
6000ZZ轴承
同步轴
同步轮挡圈
3M-20Z-φ10同步轮
8 Y轴电机座
y axis motor base
压铸底座  60.00
皮带轮座
皮带轮轴
5*10平键
3M-228环形带
电机调节板
6203ZZ轴承
3M-20Z-φ8同步轮
3M-38Z-φ17同步轮
9 Y轴左右滑块
Y axis left and right slider
滑块板  30.00
同步带调整块
同步带压块
10 Y轴前后垫块
y axis front and back supports
   10.00
11 Y轴中间垫块
y axis
   10.00
12 电机同步轮
motor gears
   5.00
13 228环形带
loop belt
   5.00
14 导轨轴承

rail slier wheels
   5.00
15 销钉螺丝
screw
   4.00
16 偏心轮
eccentric wheel
   4.00
17 水接头
water connector
   5.00
18 φ12联轴器
shaft connector
   25.00
19 内滑导轨
inner slider rails
   70/m
double head:300usd single head: 250usd
