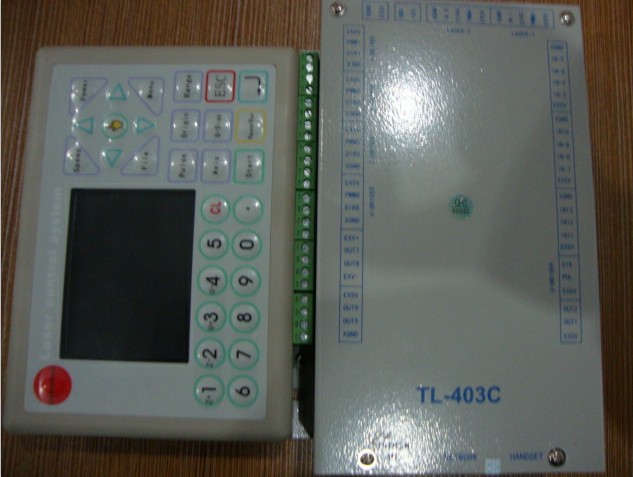

TL 403C color top wisdom co2 laser engraving&cutting controller
Product Name:TL 403C color top wisdom co2 laser engraving&cutting controller
Model No.:TL403 TL403C
Product Abstract:color top wisdom co2 laser engraving&cutting controller TL403C real color , preview work time, usb port , support web , true color display, can directly preview picture and graphics on the LCD display. It also can be managed and operated by internet. The operation mode is more humanization
- Product Description
L403C1A is combined with the outstanding features ofTZL-301, specially served for all the Laser Engraving Cutting machine manufactures.

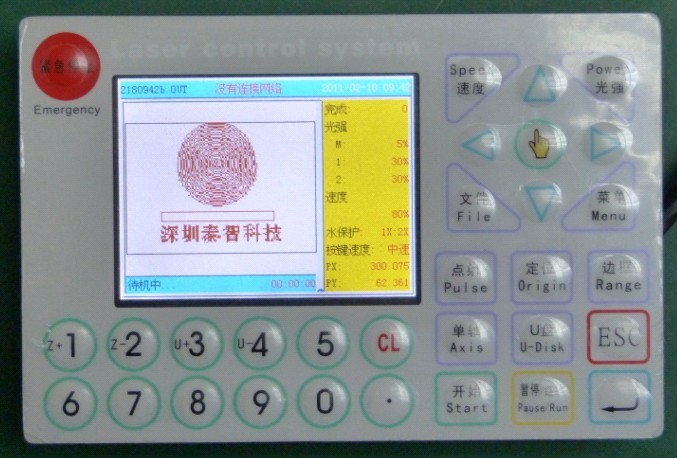

It’s true color display, can directly preview picture and graphics
on the LCD display. It also can be managed and operated by internet. The operation mode is more humanization.Technical parameters：
The Max Coordinate
X YZ U axis
Various DC laser、RF-CO2 laser.
Laser cutting machine、Laser engraving machine etc.
Laser Engraving Cutting Software:
Laser Engraving Cutting Software contains independent software, CorelDraw 12 embedded software and AutoCAD embedded software.
Engraving cutting machine software
CorelDRAW11/12/X3/X4、AutoCAD output directly
Independently set the engraving and cutting
Can be 360-degree slope engraving
Automatically width of compensation
Convenient parameters settings and cutting path settings
Use the embedded DSP technology of 32-bit floating point high-speed to control the core, the main frequency is up
to 150MH. Setting device parameter out of PC completely.
All coupler completely isolated from outside interference, the system is reliable, U disk can upgrade to the latest program.

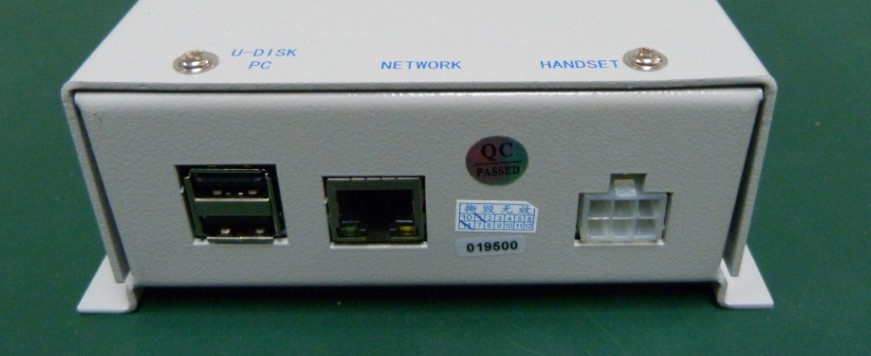

Support USB2.0 port, U disk reading and writing.
Network management, PC-communication is more convenient, safe, and reliable.
With 64MB storage, work independently form PC, which is useful for the quantities of engraving and cutting production.
Control algorithm based on the size and measurement to make the system more generic
Can fulfill 5 axis’ control(X Y Z U laser control, Z is lift axis, U is feeding axis, they are also can be custom-made flexibility)
Connect the various motor drive system, and can control servo、stepping etc motion organization.
Support automatic inflatable, automatic focus, the foot switch, safe protection etc functions.
Support Dural-laser control, power can adjust separately, and can control a variety of lasers.
A variety of engraving and cutting models can finish the operation in one time
When cutting it can increase the introduction export line at any angle, ensure the cutting seams smooth, flexibility set the
cutting speed of small circle, improve a high cutting effect.
Layered output data, each layer can be individually defined on the output power, the output speed, and the laser models
(cutting, engraving, slop engraving etc, and automatically save the definition and parameter of each layer.
When power is cut off suddenly, it still can support the machine work (that is Power Continued Carving),
the function can make you do large files flexibility.
Freely distribute the control software(such as CorelDraw and AutoCAD) based on Windows( or supportPLT,BMP,DST，DSB，DXF etc format. )
LCD display screen, can customize touch screen as well.
