water dydrogen flame machine h60

  • water dydrogen flame machine  h60
  • water dydrogen flame machine  h100
  • Water hydrogen flame machine

Product Abstract:

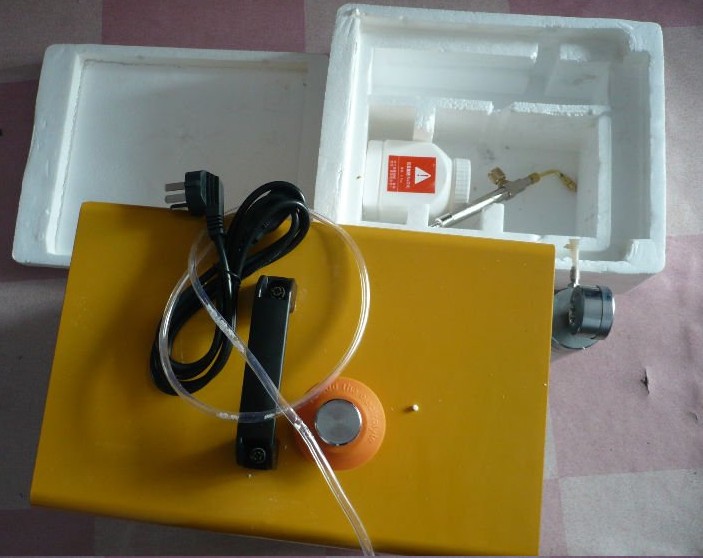

water dydrogen flame machine h60


Product Description

Model:H60

Air flue: 65L/hour
size: 480*280*360mm
weight: 11kg
input voltage: AC220V/50HZ

Specifications



Model

H60

H100

Power

AC220V

50Hz

AC220V

50Hz

Dimensions

480*280*360mm

500*300*380mm

Weight

11kg

12kg

Gas flow

65L/h

100L/h

Torch

1 set of torch

1 set of touch

Electrolyzing case

Single case,3 layers

Single case, 3layers

Consumed fuel

Water, from best to ordinary are: distilled water, purified water, cold boiled water, tap water, and , mineral water.

Safety fittings

Innovation backfire-proof fittings, intellectualized pressure switch, safety gas releasing valve and multilevel explode-proof design.

Work environment

0-50 degree centigrade well ventilated. Better 50cm above the ground.

1. Take water (distilled water and pure water) as fuel, which are obtained easily and are stored
safely. And after burning, the generation is vapour , not poisonous, it’s environmental.
2. Strong and durable, light weight and portable.
3. Workpiece polished by Micro Flame Polisher has smooth edge.
4. Due to its special design of “low working voltage, cut off automatically beyond the set
voltage”, it’s a safe equipment and saving energy.
5. It’s used widely to polish acrylic irregular surface,



Consumed fuel:Water,distilled water, purified water, cold boiled water, tap water, and mineral water

 APPLICATION

1) Jewelry Industry

For welding kinds of chain and string made of platiomnum , gold , silver , copper , stainless steel , ect .

For mending tiny sand holes on jewelry casting ,

For jewelry repairing (reforming , casting , welding) .

2) Organic Glass Industry:

Quick and fine polishing for acryl (organic glass), solving problems that grinding wheel cannot achieve.

3) Electronic Industry:

For welding enameled wire .

For welding LED wafer .

For flame-treating circuit board

4) Medical Industry:

For welding metal fittings and mending sand holes in dentistry .

For no-carbon flame disinfection or glass seal .

5) Laboratory:

Providing convenient , safe and clean oxy-hydrogen flame .

6) Others:

For welding or heat treating small metal parts .

APPLICATION



1.Organic Glass Industry

Organic glass ( acrylic ) polishing. High temperature flame can beautifully process the organic

handicraft articles.



2.Electronic Industry

IC encapsulation



3.Semiconductor



4.Nonferrous welding, braze welding

In the process of welding nonferrous metal ,oxygen is not necessarily needed by Oxy-hydrogen Generator.

It can save costs by more than 30% compared with the other way with the same-materials and same workloads .

a. Welding all kinds of platinum, gold ,silver , copper ornaments and so on.

b. The fusion of lead accumulator and tin poles.



5.School laboratory

Providing convenient and safe oxy-hydrogen flame.





Operating Procedures:

1.Dissolving Electrolytic Powder

Add water and electrolytic powder(NaOH or KOH into the container and stir, and then cool off for 10 minutes.The ratio of electrolytic powder and water is 1:5.

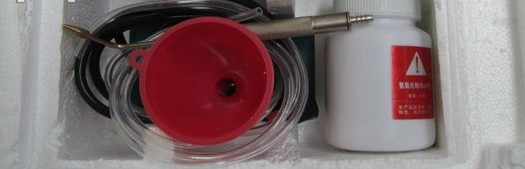

2.Adding electrolytic solution

(1)Unscrew the nut of water inlet

(2)Fix funnel to avoid the leakage of electrolytic solution

(3)Pour the electrolytic solution into electrolysis trough

(4)It could be better to add the solution up to 90%

(5)Screw nut of water inlet



3.Adding filter agent

(1)Turn left and unscrew the filter cup

(2)Add filter agent into the filter cup, less than 1/2

(3)Install the filter cup to its upper cover and screw it.





4.Power-on Test

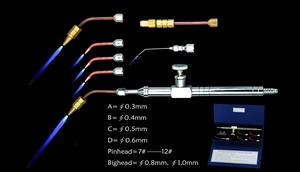

(1)Connect flame gun to gas outlet using rubber tube. Choose proper nozzle according to the size of raw edges

(2)Turn on the power, if the indicator light works, blower shifts, and at the same time, turn off flame gun and the pressure value increases, all is normal.

(3)Light with direct fire, let the flame point to raw edges directly or tiltedly and keep proper distance, and then scan raw edges evenly.
