  • Product Name:

    metal cutting machine
  • Model No.:

    1390 1313 1318 1325 1525 1520 1825 2030
  • Price:

    50000-10000
  • Minimum Order:

    1

Product Abstract:

metal and non metal cutting machine, can cut metal and non metal products , up to 2mm stainless steel, and 30mm non metal products


Product Description

metal and non metal cutting machine,

can cut metal and non metal products ,

up to 2mm stainless steel, and 30mm non metal products

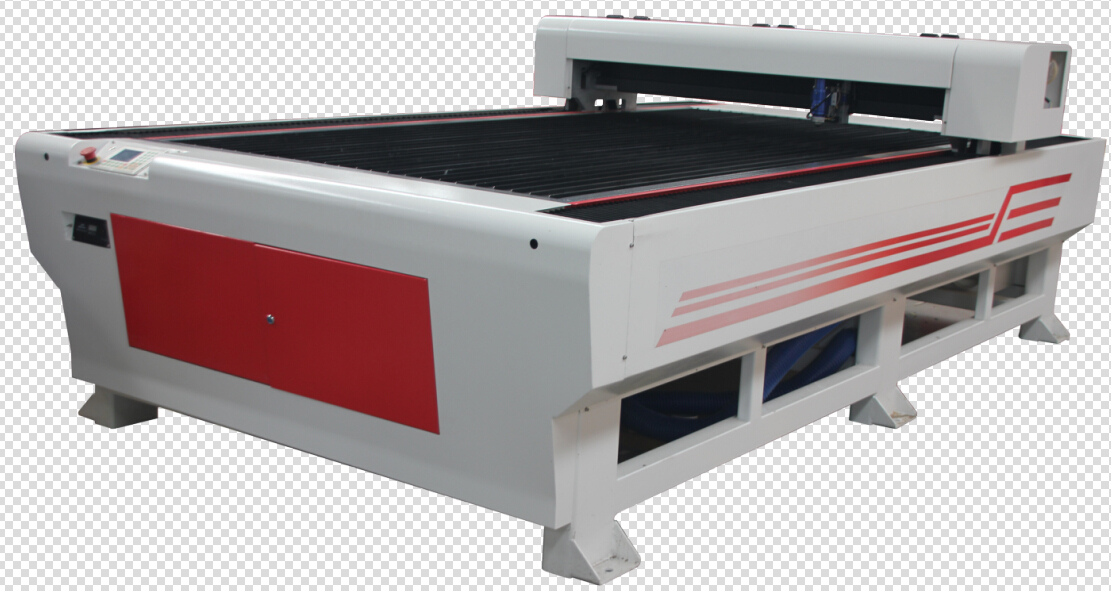

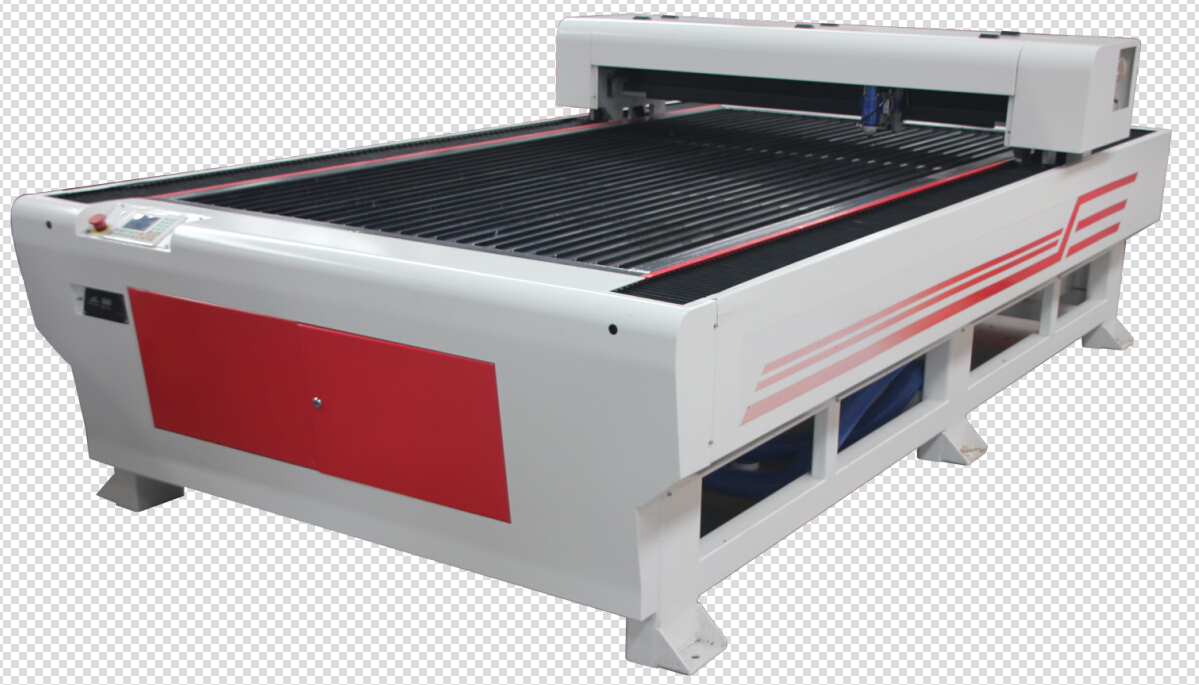

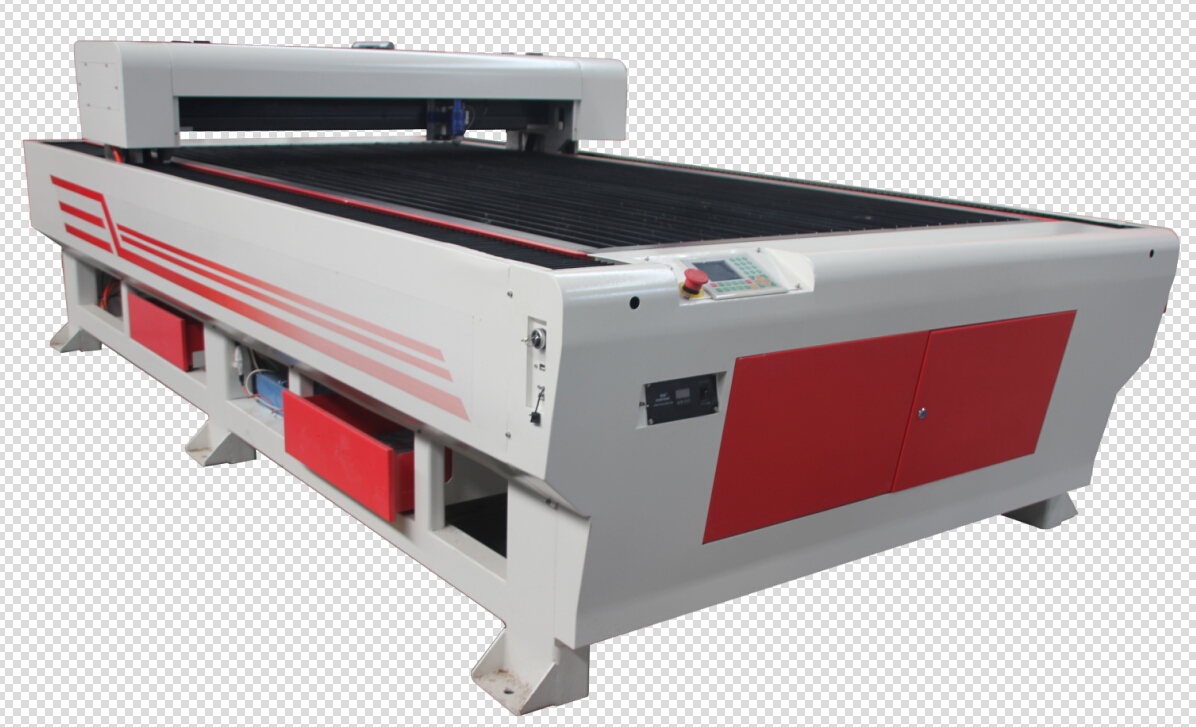

1325 GL METAL AND NON METAL CUTTING MACHINE



Parameter:

Model

1325GL Laser Meatal&Non Metal Cutting  Machine

Working area

1250x2500(mm)

Laser power

130W

Laser type

Sealed co2 laser tube

Working platform:

Blades working table

Working speed

≤300mm/s

Resetting position accuracy

+/-0.05mm

Graphic format supported

BMP PLT DST AI DXF

Cooling mode

Constant water-cooling and protection system

Working voltage

AC220+/-10%   50~60Hz   10A max

Operating temperature

0~45℃

Operating humidity

5%~95%

Driving motor

X/Y axis leadshine Servo motor, Z axis stepper motor

Whole machine size

3400x1830x1100(mm)

Exhausting  Method

Exhausted by funnel

Compatible software

Creldraw, autocad,photoshop



Features:

1.Mixed-cut:metal-Stainless steel, carbon steel and non-metal-acrylic, board

2.High precision:X/Y adopt leadshine servo motor with high precision belt transmission greatly improve the

 response speed and cutting precision of equipment, extend the time of using

3.High precision and Good stability  optimized the nc system control, it can meet the precision parts processing,

stable dynamic performance,also can work for long hours.

4. The cutting section with good quality:Mechanical follow-up cutting head system, cutting head always follows

 the material to keep the cutting point location unchanged,

 which insures smooth cutting section without processing again. It can adapt to flat or curved surface sheet cutting.

5.Adopt sealed co2 laser tube , main consumable items are electric energy,water-cooling, auxiliary gas and laser light.

6. Sample structure, easy operation, stable laser device and low maintenance cost.



Applicable industry:

Mainly used for advertising industry(stainless metal and carbon steel), sheet metal industry(carbon steel),

 packaging industry(die board) and so on

Applicable materials: acrylic, stainless steel, carbon steel, MDF,die board.

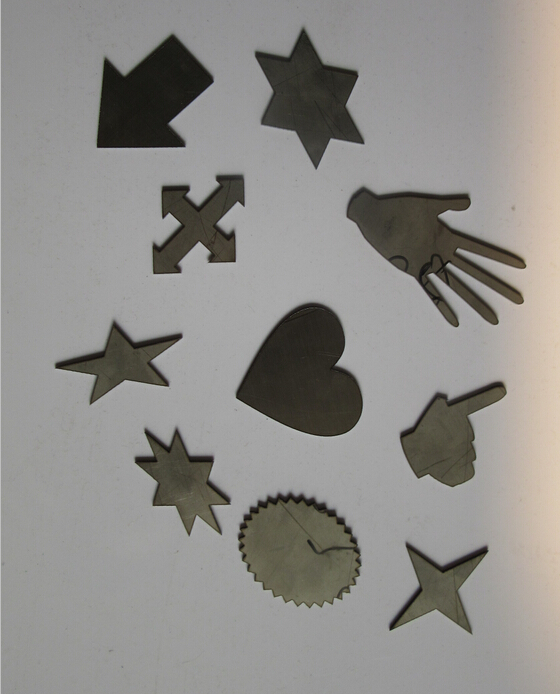

Applicable show:   metal spectacle frame, furniture plate cutting, MDF photo frame cutting, building model cutting.
