leetro laser engraving and cutting machine controller mpc6575

  • mpc6515 leetro laser engraving and cutting controller
  • leetro laser engraving and cutting machine controller mpc6535
  • leetro laser engraving and cutting machine controller mpc6575
  • co2 laser engraving and cutting controller
  • leetro co2 laser cutting controller mpc6525a
  • leetro co2 laser cutting controller mpc03 mpc08
  • leetro co2 laser cutting controller mpc6585
  • leetro CCD co2 laser cutting machine controller
  • leetro color controller mpc6595C2

Product Abstract:

leetro laser engraving and cutting machine controller mpc6575


Product Description

leetro laser engraving and cutting machine controller mpc6575

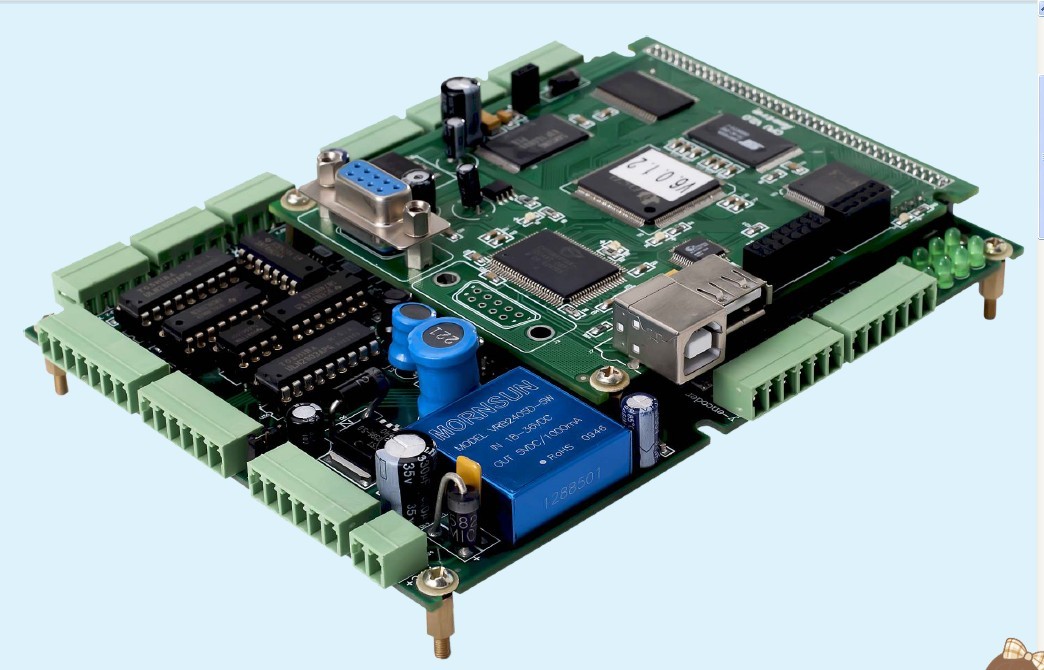

MPC 6575

The MPC6575 controller is a stand-alone close-loop control card specially designed for the servo control system of laser engraving and cutting machines. User can edit graphics, set parameters, and optimize path to develop a process file using computer. Copy the process file to USB stick, and load
it to MPC6575 through the USB interface in the controller. Then Run the processing work with PAD03 control panel.







1、Stand-Alone mode ensure system reliability in harsh enviroment
2、Improved stability compared with PC-based system
3、2-3 axes linear interpolation and 2-axis circular interpolation
4、High speed multi-axis continuous contouring
5、Velocity look-ahead and trajector blending
6、Position compare and trigger output
7、Laser control is synchronized with the laser head motion
8、Advanced PWM laser power control
9、Distinct trajectory adaptability to machine framework
10、Laser power attenuation compensation
12、Laser power control mode options:0-5VDC,PWM or frequency
13、Seperated laser power contro for dual-head laser machine
14、User-selectable tickle pulse for R-F tube
15、Master/Slave USB interface ensure high speed data transferring
16、Working menory up to 128M
17、Advanced PID algorithm eliminate any cutting inaccuracy
18、Easy interface to any AC or DC motors with analogue
19、All digital inputs and outputs are 2500Vrms isolated
