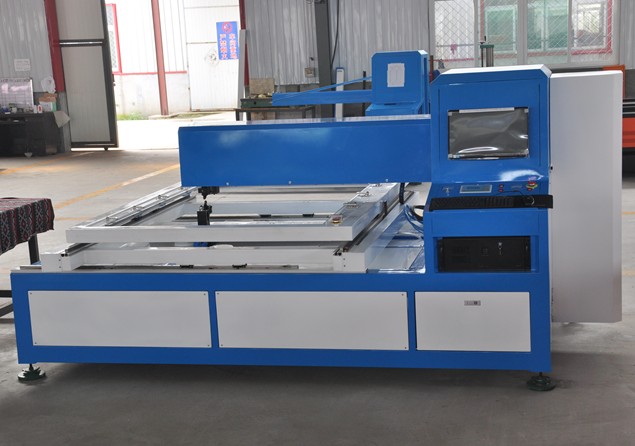

Laser die cutting machine
Product Name:Laser die cutting machine
Model No.:1290 1215 1318 1325 200w-400w
Product Abstract:Laser die cutting machine 1290 1215 1318 1325 200w-400w
- Product Description
Laser die cutting machine/Laser Knife mold machine
Laser Proofing: can make box type design samples based on the actual paper material, compared to
laser proofing has no contact pressure, more accurate and faster, and equipment investment cost, daily
use cost is lower than mechanical proofer.
1. Laser drawing: can print single map and large-format Layout diagram on drawing paper, can save a large-format plotters worthy of tens of thousands, and printing drawings and die cutting is by the same knife mold
cutting machine, to avoid the
inconsistency owing to different accuracy of different equipment , so accuracy will be higher, can work offline.
2. Laser Cutting: Using exclusive patented technology, precise screw transmission system, can cut and
make 5mm, 6mm plastic die,
and 18mm, 15mm, 20mm wooden die, can have 0.45,0.53,0.71,1.05,1.42 mm or any other width of the kerf.
3. minimal investment: compared to the imported laser die cutting machine worth millions and other
domestic laser die cutting machine
worth close to million that have similar function, this product only one hundred thousand, little investment,
high cost, minimal risk, refund fast,
normally three to six months can recover their investments.
4.High efficiency: cutting speed up to 150 m / day (18mm wood board) to 500 m / day (6mm plastic sheet),
the monthly output up to 100,000.
Single laser die cutting machine can meet the needs of most of the individual die cutting or packaging and
printing plant, consume cost is very low ,
utilities, consumption components (laser tube, lens, etc.) by working 24 hours a day continuously for 30
days per month it costs less than 1,000
per month, and it is only one tenth or one several tenth of other imported laser knife mold cutting machine,
and can use the minute open, no need to wait for boot time.
5.fast and comprehensive service: free training, free delivery and installation, one year free warranty, free
upgrades and lifetime maintenance.
6.Application sectors: printing, knife mold factory, plastic plants, die cutting plant, proofing plant, carton plant,
7. Application industry: printing factory knife templates, cutting board production, cutting 6mm self-adhesive
plastic board ,18-22mm multilayer prototypes.
Solenoid valve automatic press plate system, imported air filter, liquid crystal displays, high-speed DSP
control system, auto-focus laser head, imported high-precision linar square rails, imported precise ball screw,
stepper motors imported from Japan, professional
1.fixed optical line (laser head fixed and platform movement, Auto Focus).
2.the double direction imported precise ball screw drive (higher accuracy), precise electronic die
3.can cut through the 18-22mm.seam is absolutely Vertical and even, speed is about one meter knife line
every two minutes. An eight piece Color Box Die can be Cut within half an hour.
4.low power consumption with low cost.220v single phase electric, 3 kWh / h (300W power grade models).
5.high strength and stable work table, weight about two tons. work for years without distortion or misshape.
6.work without the use of auxiliary gas (300W power models).
7.can be used when turn on, don't have to wait for open and turn down and save cost.
8.automatic zoom function, computer-controlled, imported screw drive motor imported from Japan,
the United States imported lenses, metal can be cut if the aerated .
9.free delivery, installation, commissioning, training, laser tube warranty 6-10 months, the machine
one-year warranty and lifetime maintenance and other services!
1.(1200×900)mm 2.(1200×1200)mm 3.(1200×1500)mm

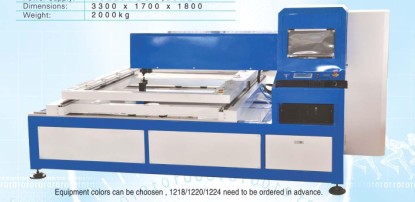

Equipment colors can be choosen , 1218/1220/1224 need to be ordered in advance.

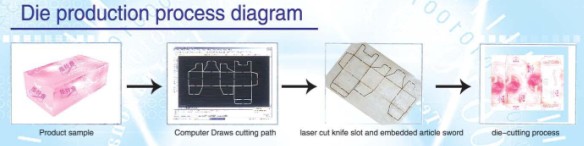

Die production process diagram: Product sample - Computer Draws cutting path - laser cut knife slot and
embedded article sword- die-cutting process
