Product Abstract:

EFR CO2 LASER POWER SUPPLY 80W 100W 150W


Product Description

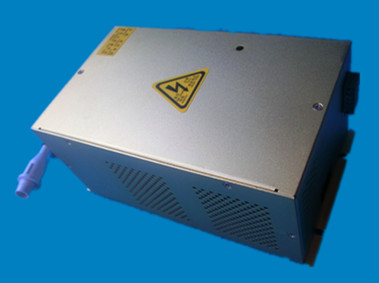

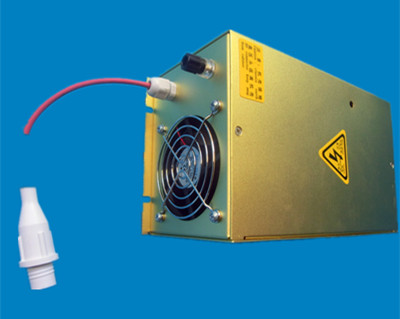

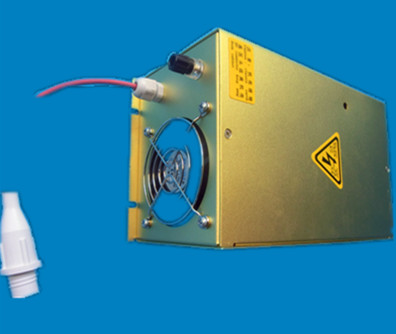

EFR CO2 LASER POWER SUPPLY 80W 100W 150W

Main feature:

 special structure, special small interface design, convenient power installation, can easily be mounted on the X-axis beam laser machine.

 special surface treatment process, good power safety performance, elegant appearance.

 for powerful high-power laser tube design, power, power is safe, reliable, long life.

 stable output current, with this power can make larger and more stable laser output.

 laser power, start-stop control is simple, you can choose a high or low level control.

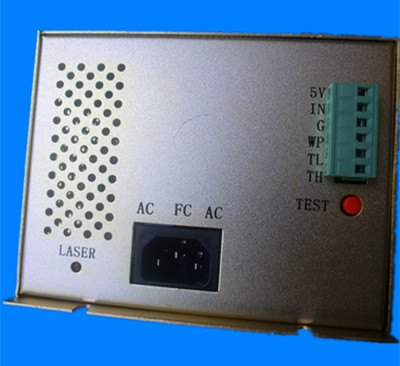

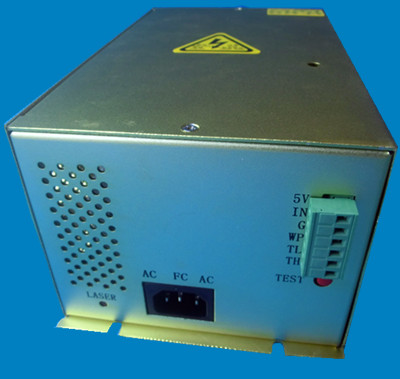

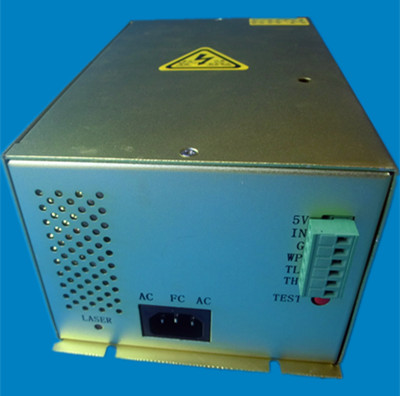

 with a light signal indication, water protection signal indicating the laser output indication.

 Output current convenient, you can easily adjust the chassis external small screwdriver.

 Applications: acrylic engraving, cutting; fabric engraving, cutting; rubber plate engraving, cutting.

 The main technical parameters

item

HY-E80

HY-E100

HY-E150

Input

Input voltage

AC220V or 110V (special instructions when ordering)

AC frequency

47~440HZ

Maximum input power

450W

550W

1000W

Maximum input current

5A

8A

10A

Output

Maximum output voltage

35KV

40KV

50KV

Maximum output current

29mA

32mA

38mA

Efficiency

≥90%

Working time

≥15000 hours MTBF

Response speed

≤1mS

Pressure input

- output, input - housing: AC1500V 10mA 60s; negative output and case is not isolated

Working condition

operating temperature (-10 ~ 40) ℃, relative humidity: ≤90%

cooling

Forced air cooling form

Dimensions

Length X Width X Height (mm)

240 X 138 X 105

273 X 138 X 105

342 X 138 X 105
